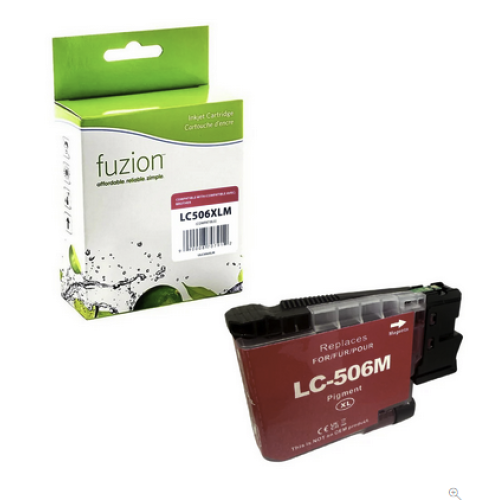

Compatible Brother LC-506XLM Magenta Fuzion

  • Compatible Brother LC-506XLM Magenta Fuzion
    • 1 - Child
    • - A Fuzion

Fuzion! Quality that simply costs less.

Article #:FUZIONBRLC506XLMA
Origin code: LC506XLMS
Type: Ink Jet
Category: New Compatible
Capacity: High Yield
Genrration2: HD
Ink3: 1,9 picolitres
Print color: Magenta
Nomber of pages4: 1.500 (0.019$/pages)
Price: 29.95$

Laser Toner Cartridge Brother LC506XL Compatible certified ISO/IEC 24711 et 24712, ensures performance and print quality comparable to original cartridges.

  • Product guaranteed at 100 %.

  • Free Technical Support.

Compatible printers

Brother – Mfc Series
MFC-J4355DW | MFC-J4555DW | MFC-J6560DW | MFC-J6960DW

Reference: Brother LC506XLMS

1Version, 2Generation, 3Ink — Toner,  4Nomber of pages... Learn more⇓

Brother LC506, LC506XL and LC506XXL Ink Cartridge Cleaning and Maintenance

How to Clean the Brother LC506 Print Head

The cleaning procedure depends on your Brother printer model.

Brother MFC-J4355DW – Button-Controlled Printer

INK → PRINT HEAD CLEANING
  1. Press the Ink button.
  2. Use the navigation arrows to select Print Head Cleaning.
  3. Press OK.
  4. Select Black only, Color only or All.
  5. Press OK.
  6. Choose Normal, Strong or Strongest.
  7. Press OK.
  8. Press the Start button indicated by the printer.
  9. Wait until cleaning is complete.

Brother MFC-J4555DW – Touchscreen Printer

INK → PRINT HEAD CLEANING
  1. Press Ink on the touchscreen.
  2. Select Print Head Cleaning.
  3. Choose Black only, Color only or All.
  4. Select Normal, Strong or Strongest.
  5. Always start with Normal.
  6. Press Start.
  7. Wait until cleaning is complete.

Important: LC506, LC506XL and LC506XXL cartridges use the same cleaning procedures.

How to Print a Quality Check Sheet

Brother MFC-J4355DW:

INK → IMPR. PRINTQUALITY → IMPR. PRINTQUALITY

Use the navigation arrows and OK button.

Brother MFC-J4555DW:

INK → IMPROVE PRINT QUALITY → CHECK PRINT QUALITY
  1. Open the appropriate menu for your printer.
  2. Start printing the Print Quality Check Sheet.
  3. Examine the black, cyan, magenta and yellow blocks.
  4. Check whether any lines are missing.
  5. If all lines are complete, no additional cleaning is required.
  6. If lines are missing, select the option indicating poor print quality.
  7. Follow the printer instructions to identify the defective patterns.
  8. Confirm cleaning when prompted.
  9. Print another quality check sheet after cleaning.

Expected result: all four colour blocks should display complete lines without white gaps.

Special Cleaning: Use Only When Necessary

If several normal cleaning cycles have not improved print quality, Brother provides a special cleaning procedure.

Brother MFC-J4355DW:

  1. Press Ink.
  2. Select Print Head Cleaning.
  3. Press OK.
  4. Press Settings and OK simultaneously.
  5. The special cleaning cycle starts automatically.

Brother MFC-J4555DW:

  1. Open Ink → Print Head Cleaning.
  2. Press and hold the icon indicated for special cleaning on the touchscreen for five seconds.
  3. Wait until cleaning is complete.

Warning: special cleaning consumes a large amount of ink. Use it only when several normal cleaning cycles have failed to improve print quality.

Brother LC506, LC506XL and LC506XXL Ink Cartridges

LC506 – Standard Yield

  • LC506BK – Black – approximately 1,000 pages.
  • LC506C – Cyan – approximately 900 pages.
  • LC506M – Magenta – approximately 900 pages.
  • LC506Y – Yellow – approximately 900 pages.

LC506XL – High Yield

  • LC506XLBK – Black – approximately 2,500 pages.
  • LC506XLC – Cyan – approximately 1,500 pages.
  • LC506XLM – Magenta – approximately 1,500 pages.
  • LC506XLY – Yellow – approximately 1,500 pages.

LC506XXL – Super High Yield

  • LC506XXLBK – Black – approximately 5,000 pages.
  • LC506XXLC – Cyan – approximately 2,500 pages.
  • LC506XXLM – Magenta – approximately 2,500 pages.
  • LC506XXLY – Yellow – approximately 2,500 pages.

Page yields are approximate and based on ISO/IEC 24711.

Compatible Brother Printers

  • Brother MFC-J4355DW
  • Brother MFC-J4555DW

Why Is One Colour Not Printing?

A missing colour may be caused by:

  • Clogged print head nozzles.
  • An empty or nearly empty cartridge.
  • Incorrect cartridge installation.
  • A cartridge recognition problem.
  • The printer remaining unused for an extended period.

A Print Quality Check Sheet helps identify the affected colour.

How to Fix Blurry or Misaligned Printing

Print Head Alignment

Brother MFC-J4355DW:

INK → IMPR. PRINTQUALITY → ALIGNMENT

Brother MFC-J4555DW:

INK → IMPROVE PRINT QUALITY → ALIGNMENT

  1. Complete a print quality check first.
  2. Open the Alignment menu.
  3. Confirm that the print quality check has been completed.
  4. Select the required paper size.
  5. Choose the paper type if prompted.
  6. Print the alignment check sheet.
  7. Follow the instructions displayed on the printer.
  8. Print another document to verify the result.

What If Cleaning Does Not Work?

  • Check the ink levels.
  • Make sure all cartridges are installed correctly.
  • Verify that the printer recognizes the cartridges.
  • Identify the affected colour.
  • Avoid repeated cleaning without improvement.
  • Never touch the print head directly.
  • Do not use alcohol or solvents on the print head.
  • If the problem persists, request technical assistance.

Frequently Asked Questions

Why is my Brother printer not printing cyan?

The cyan nozzles may be clogged, or the cartridge may be empty, incorrectly installed or not recognized. Start with a print quality check.

What is the difference between LC506, LC506XL and LC506XXL?

These cartridges are designed for the same printers but offer different page yields. XL and XXL versions allow more pages to be printed before replacement.

Should I replace a cartridge when a colour is missing?

Not necessarily. Clogged print head nozzles can cause the same problem. Start with the built-in print quality check and cleaning procedure.

Why does my printer not recognize the cartridge?

Check the cartridge reference, installation and condition. A recognition problem is not necessarily caused by clogged print head nozzles.

Tips to Prevent Print Quality Problems

  • Print black and colour documents regularly.
  • Avoid leaving the printer unused for several weeks.
  • Turn off the printer using its Power button.
  • Normally leave the printer plugged in so automatic maintenance can operate.
  • Keep replacement cartridges sealed until needed.
  • Avoid unnecessary cleaning cycles.

André Ink Tip

A missing colour does not automatically mean your Brother LC506, LC506XL or LC506XXL cartridge is defective. Before replacing it, perform a print quality check and use your printer's built-in cleaning procedure.

Need Help?

The André Ink team can help identify cartridge, recognition and print quality problems with your Brother printer.

Note: Menu names may vary depending on the language selected on your printer.

```
